Specialised Slewing Drive Solutions For Heavy-Duty Automated Rotating Equipment

In response to the specific operational requirements of heavy-duty automated rotary equipment, U-TRSM has used its rich experience in custom designs to develop a high-performance slewing drive that perfectly balances between space constraints and heavy-duty performance.

1.Product Core Advantages & Design Highlights

Precisely Matching Operating Conditions

• Given the limited installation space, we keep the product’s maximum outer diameter under 1000mm to achieve a compact layout.
• Meet the dynamic requirements of frequent start/stop operation, ensuring synchronized motion between the slewing drive and the rotating equipment to avoid impact caused by motion lag.
• Handle conditions of heavy loads, large tilting moments and impact loads by optimising structural design to improve overall load capacity.

Key technical parameters

Innovative structural design

• Double-row ball slewing bearing: significantly improves load and tilting moment capacity in limited spaces, serving as a core technical guarantee for heavy-duty situations.

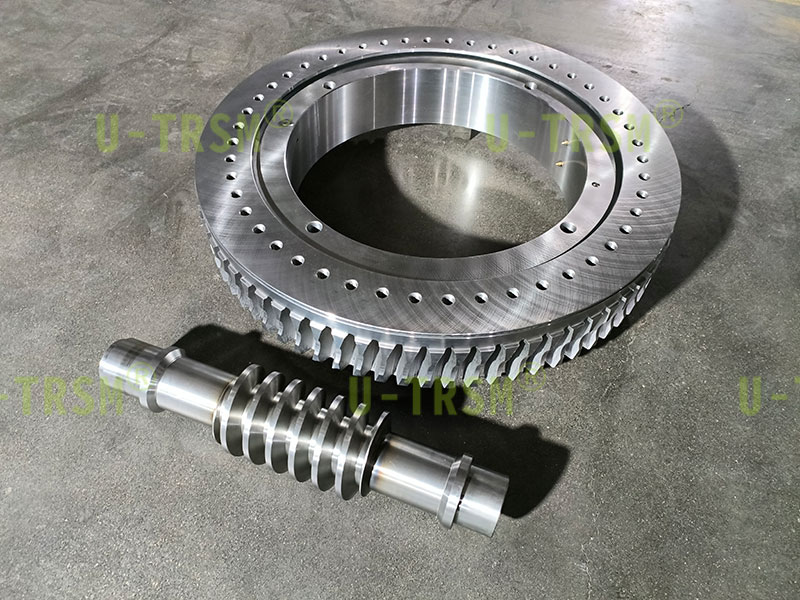

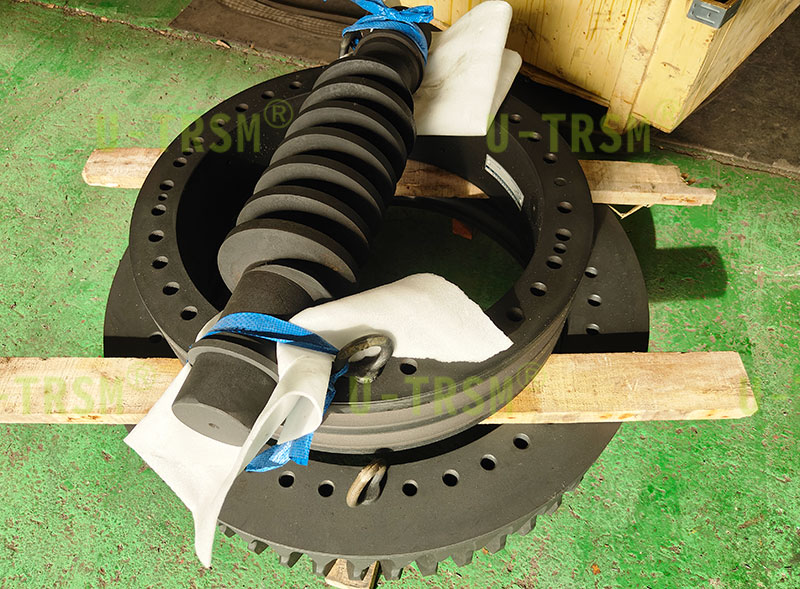

• Large module worm and worm gear: enhances tooth strength, meets high load transmission requirements, effectively resists damage from impact loads.
• Overall surface phosphating treatment: improves both corrosion resistance and appearance, suitable for long-term use in complex industrial environments.

Safety and reliability guarantee

• The safety factor for heavy-duty applications is strictly maintained at 1.5 or above, providing redundant protection for the stable operation of the equipment.
• The strength of key structures is verified through finite element analysis to ensure reliability under extreme operating conditions.

2.Professional Design Service Process

With its deep expertise in non-standard design, U-TRSM provides customers with full-process, high-efficiency services.

• 3D software simulation and modelling: clearly showing the product structure through precise modelling to help customers quickly understand the design.
• Animated simulation display: dynamically showing the motion process so customers can anticipate assembly and operation effects in advance.
• Finite element analysis: scientifically assess product performance parameters, optimise design details, and reduce the risk of later adjustments.
• Quick response mechanism: shorten communication cycles with efficient work, provide solutions quickly, and speed up the customer’s design process.

This slewing drive product not only meets the required technical parameters with precision, but also embodies U-TRSM’s design philosophy of putting customer needs at the core, providing the optimal solution for heavy-duty automated rotating equipment with both space efficiency and load reliability.
