Analysis of U-TRSM integrated heavy duty slew drive technology

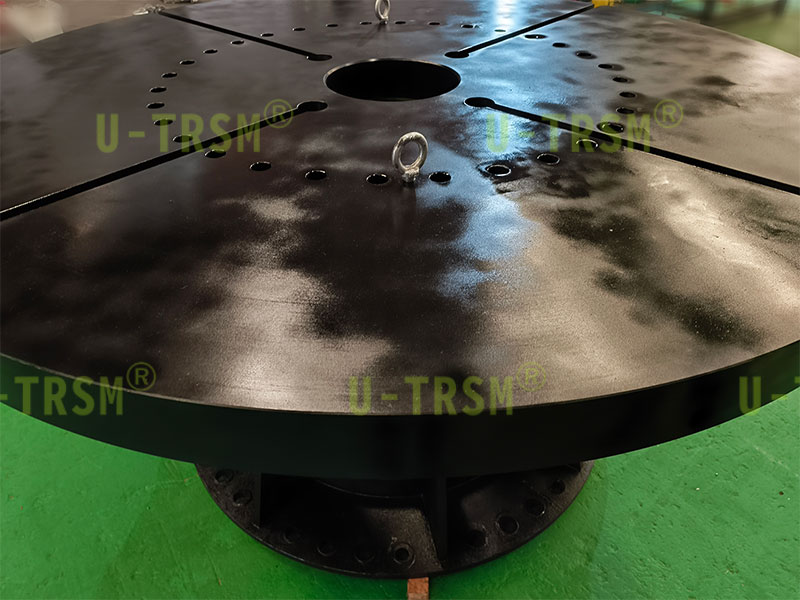

This integrated slew drive is combined with a rotating platform. The customer requires the maximum load of the platform to be 3t, the diameter of the rotating platform is required to be 2m, the platform speed is 12r/min, and the rated output torque is ≥ 13KN.m. U-TRSM design engineers have developed this slew drive according to customer needs, integrated design of base and platform, through the customer’s load and other practical application conditions, according to finite element design analysis, determine the slew drive model, base and platform material and thickness and other parameters.

This slew drive has an axial load capacity of up to 3101 KN, a tilting moment of up to 560 KN.m, a maximum speed of up to 41 r/min, and a rated output torque of up to 36.4 KN.m.

This slew drive achieves significant performance improvements while meeting customer requirements through its integrated structure, precise matching, and comprehensive mechanical analysis. At the same time, its integrated design provides customers with an efficient and reliable solution.

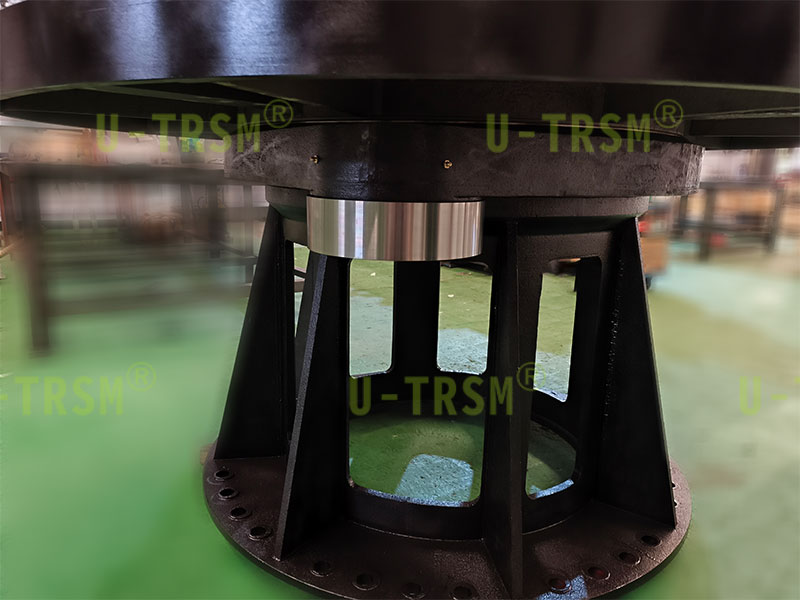

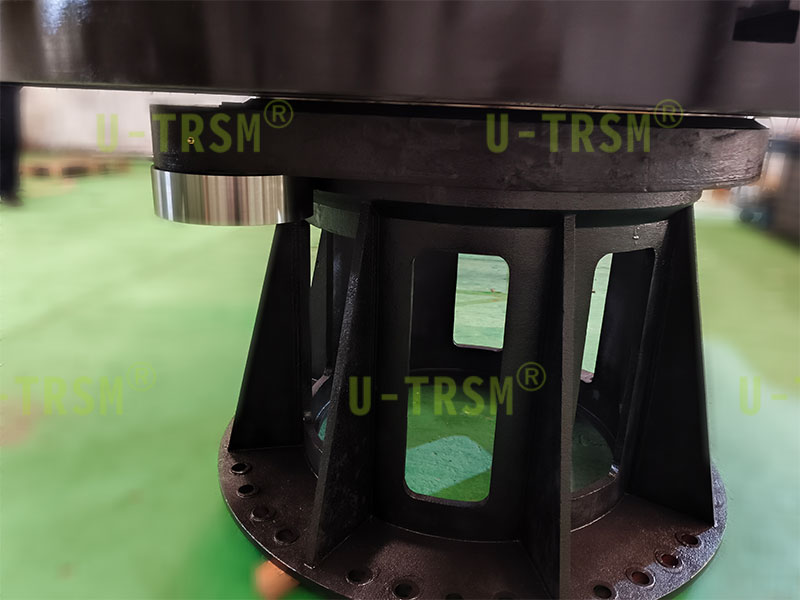

U-TRSM design engineers have developed and manufactured a variety of integrated slew drives.The integrated design avoids customers from integrating drawings due to multiple procurement, saving time and effort, when multiple components are combined, we can achieve precise positioning by matching them according to the specific values of different tolerances. Besides the core performance of the slew drive, we also conduct finite element stress analysis on other accessories or make proportional trial samples to improve the force rationality of the components.
