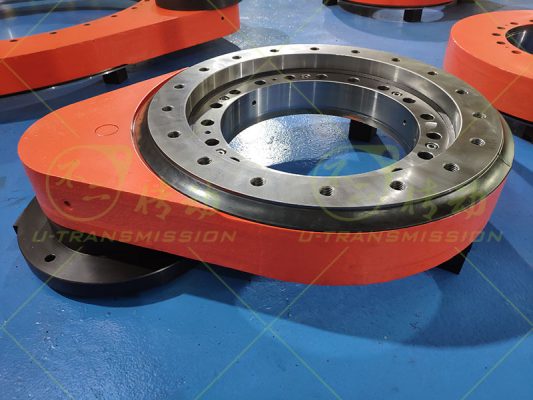

S-III-O-0431 Three series heavy load external gear full protection special flange spur gear slewing drive

Publish time:2021/03/15 Latest Products Views:140

·This gear type rotary reducer gear ratio 4.60
·Rated output torque 17Kn.M
·Rotation center diameter 431mm
·Total height with adapter flange 198mm

Product Details

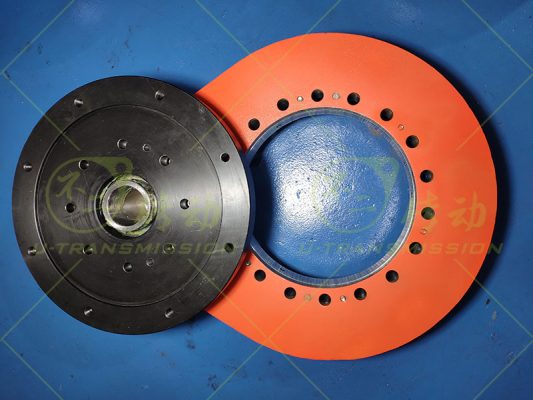

S-III-O-0431 three series heavy load external gear full protection special flange spur gear slewing drive, customers used it in the field of industrial reciprocating motion, spur gear slewing drive is used for vertical installation, limited by the installation space, the diameter of the spur gear slewing drive cannot be too large, this constraint restricts the gear ratio of the spur gear slewing drive cannot be made larger, but the output torque requirements are very high, In this case, only a very large motor can be used to meet the total output torque, the adapter flange of the final design is very large and the flange is too large to interfere with installation of the inner ring fixing bolts. For this reason, the design team of Unique Transmission has designed a special tall adapter flange to customer, cooperate with reasonable installation steps, completely solved the customer’s problem, large input torque, the adapter flange is also specially designed to ensure stability and reliability.

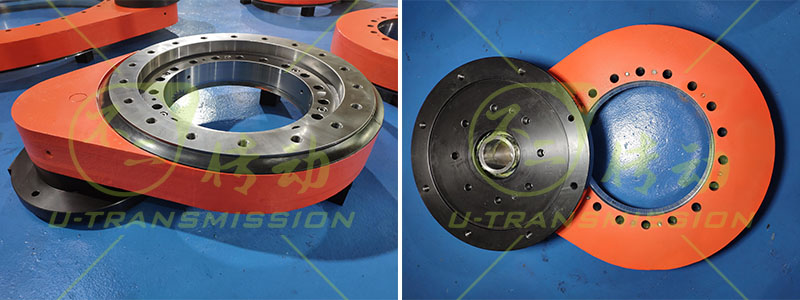

slew drive

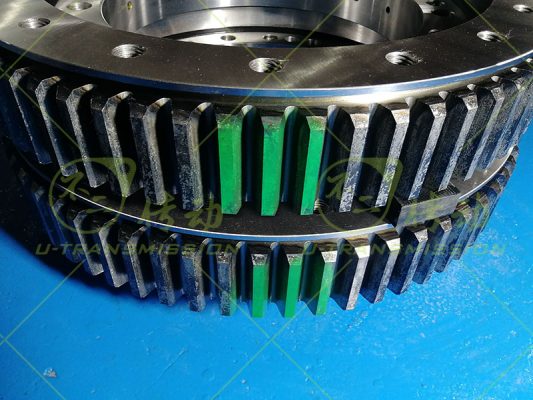

S-III-O-0431 spur gear slewing drive has a shaft hole diameter of 70mm at the input end, in order to ensure the strength of the gear, the gear adopts the design idea of increasing wall thickness, the support bearing uses large-size cylindrical roller bearings to provide reliable support to gears to ensure spur gear slewing drive can work smoothly and reliable operation.



slew drive
